Plan 82116 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2721 Total Living Area
  • 1728 Main Level
  • 993 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 2 Car Garage
  • 53'6 Wide x 64'10 Deep
Available Foundation Types:
  • Crawlspace
  • Slab

Plan Pricing

  • PDF File: $1,350.00
  • 5 Sets: $1,450.00
  • 5 Sets plus PDF File: $1,700.00
  • PDF File Unlimited Build: $2,050.00
  • CAD File Unlimited Build: $2,700.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $75.00
* prices shown w/o any discounts applied

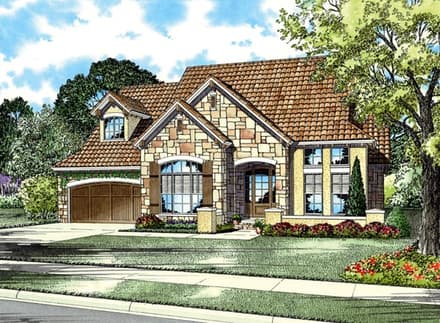

Plan 82116 | Order Code: 00WEB | Elevation

Reverse Plan


Plan 82116 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan 82116 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

Specifications

  • Total Living Area: 2721
  • Main Living Area: 1728
  • Upper Living Area: 993
  • Garage Area: 475
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 53'6
  • House Depth: 64'10
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 27'4 from Front Door Floor Level
  • Primary Roof Pitch: 10:12
  • Roof Load: 45 psf
  • Roof Framing: Stick
  • Porch: 260 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • 1st Floor Master: Yes

Available Foundation Types:

  • Crawlspace
  • Slab

Plan Pricing

  • PDF File: $1,350.00
  • 5 Sets: $1,450.00
  • 5 Sets plus PDF File: $1,700.00
  • PDF File Unlimited Build: $2,050.00
  • CAD File Unlimited Build: $2,700.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $75.00

Orders placed with overnight/2-day shipping may be delayed by two business days due to a review process.

* prices shown w/o any discounts applied

Special Features:

  • Bonus Room
  • Brick or Stone Veneer
  • Courtyard
  • Front Porch
  • Rear Porch

Architectural Styles

Italian, Mediterranean, Tuscan

Plan 82116 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes and Sketch is possible.

It's as simple as that!

Plan 82116 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
